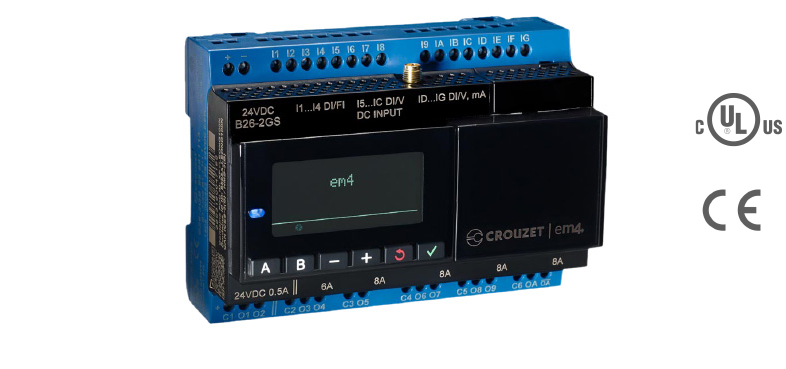

em4 Alert has a built-in GSM modem to connect to any cellular network to control and monitor your applications, no need of any other internal or external network.
Control with a simple text. Use your mobile to send instructions & receive data to your em4 via text message.
Give cellular capabilities to your application using em4 Alert to control and monitor the devices connected to it, directly or through a Modbus network.

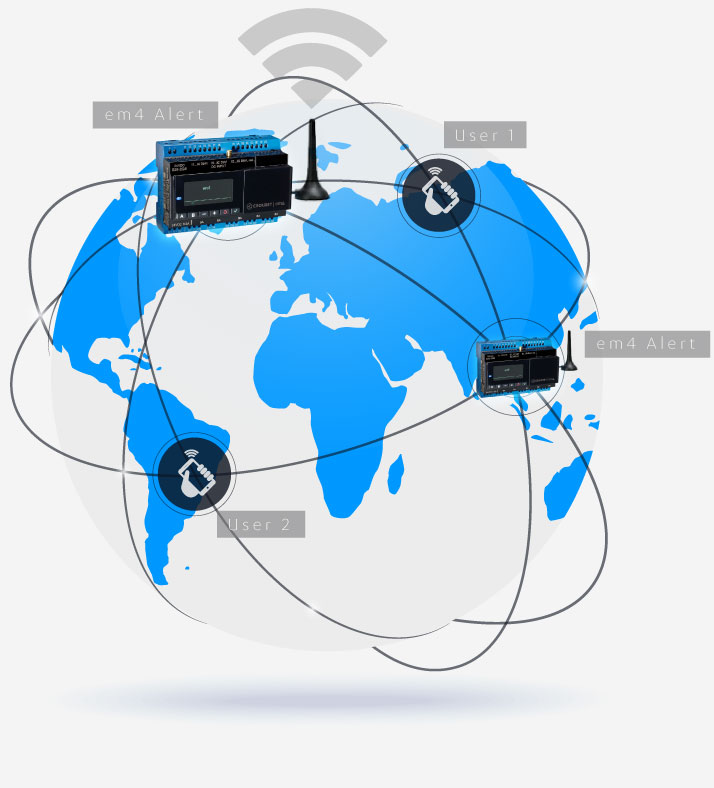

Thanks to the cellular network your em4 telecontrollers can talk to each other and exchange data via text message without being connected to a local network or to a router.
Assign users and keep control on who you want to interact with your em4, Keep it simple! Without modifying the programming, you can manage via text me saging your em4's telephone numbers, email addresses, user profiles and user access rights
Receive automatic alerts via text message and e-mail
Decide what you want to be informed of
Be always aware of your application
Save time and resources by letting em4 monitor your applications for you, it will notify you when any event occurs via email or will even send you text alarms to your mobile devices at any change
em4 Alert will also minimize the downtime of your machines and systems, since it will detect any failure and immediately alert you.
Receive data log reports in .csv files by email or FTP *
You decide if you want to receive your data periodically or request it just when you need it
Collect datalogs sent by your em4 Alert
Re-use the data to customize a preferred visualization

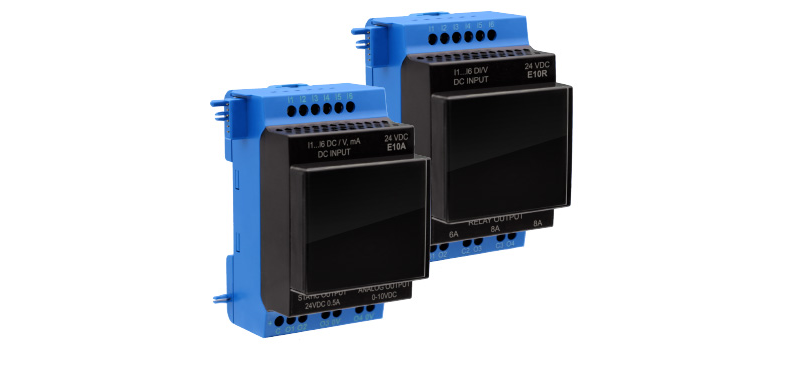

26 I/Os: 16 inputs & 10 outputs (expand up to 46 I/Os)
4 inputs are configurable, digital or high-speed counting (up to 60 khz)

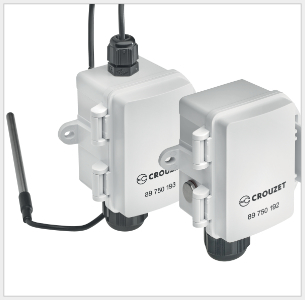

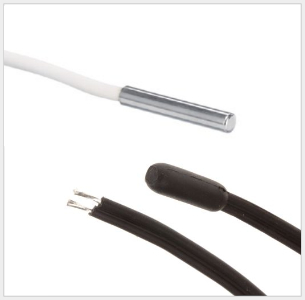

12 inputs are configurable, digital or analog for voltage (0-10 V and 0-VCC), current (4-20mA) and to connect sensors directly (LDR, NTC, pressure, flow, humidity & level)
8 relay outputs: 6 of 8 Amps and 2 of 6 Amps
2 Static/SSR PWM outputs

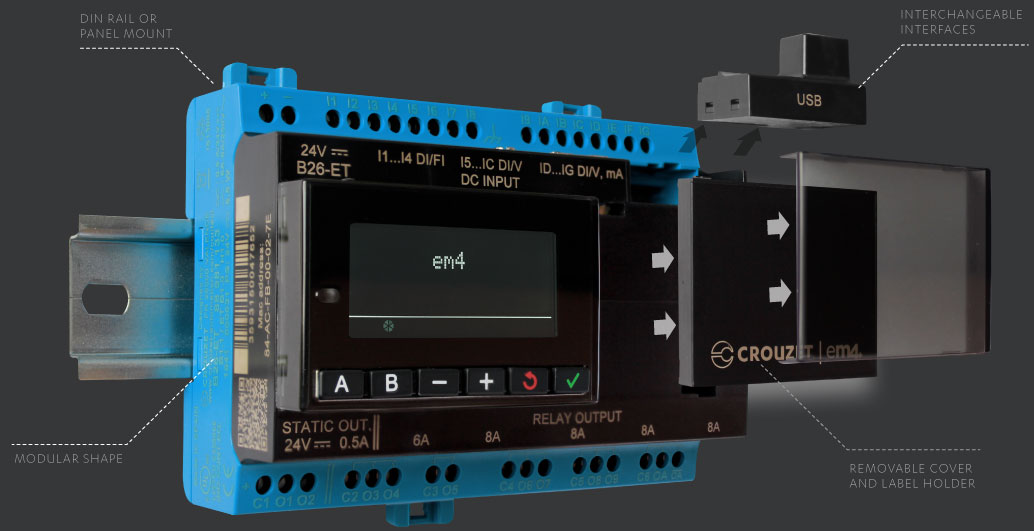

Smart Design: A PLC in a Logic Controller Body
Due to its modular shape, em4 can be also used in distribution and modular panels
You easily can use it as DIN Rail mount or convert it to Panel mount

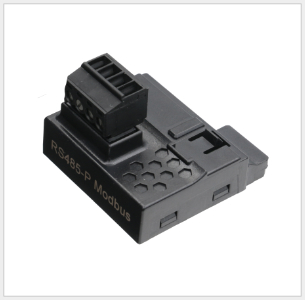

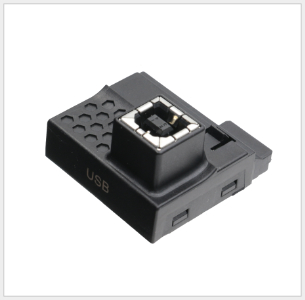

The interchangeable interfaces allows you to quickly add Bluetooth, Modbus RTU or USB capabilities*
* Use any of these while you keep using cellular functionality
The screen and control buttons embedded to the CPU makes em4 the only Nano-PLC that allows you to immediatly and directly in your application, visualize alarms and data as well as change parameters

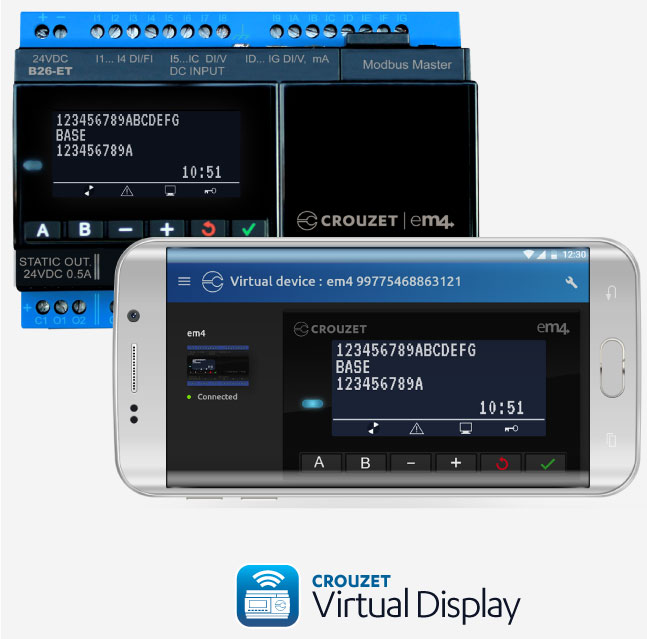

Use it via Bluetooth or USB to:
Read the product screen and use the buttons to change parameters remotely from you PC, laptop or mobile devices.
Keep control of your applications by reading recorded datalogs.
Transfer your program to em4 to set-up or update you applications, or firmware without having to remove it or disconnect any wires.
Visual programming and vast of pre-programmed function blocks to drag and drop into your application, make the new version of Crouzet Soft the most intuitive and easiest to use, even for first-time users.
Easiest and most intuitive visual programming software
Outstanding memory capacity (up to +2000 function blocks)
Ready to configure cellular modem and communication protocols
Supports complex data processing with its 32-bit capacity
Allows you to combine function block and SFC programming (sequential function chart)
Organize your program with custom icons, images and text comments
Edit & program your em4 either at your desk with USB or remotely through Bluetooth, even if already installed in your application
Create your own macros

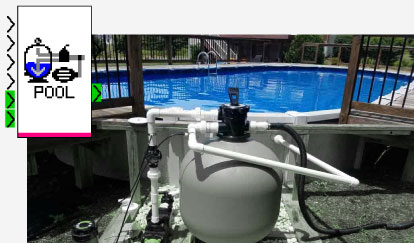

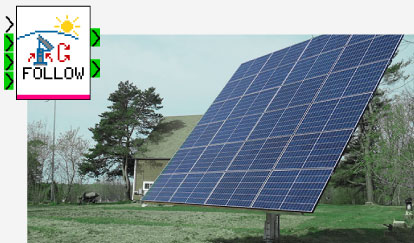

See a few samples below
Create and simulate your program
Even if you don't have the product...yet
Try it now!
It's FREELearn More Download it NOW
- B26 3GS -

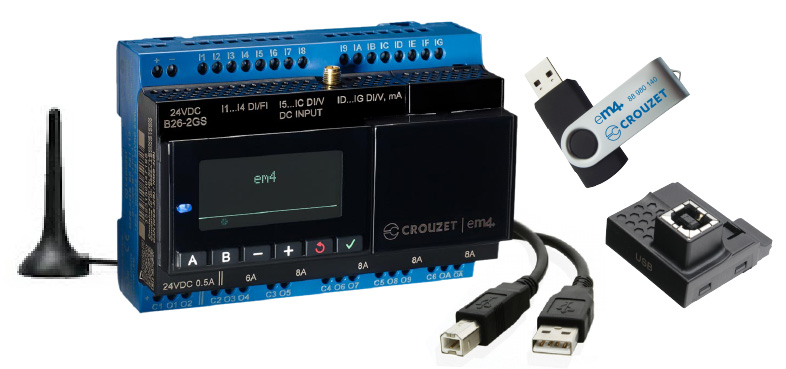

- em4 Alert + 3M Antenna + em4 soft + USB interface + USB cable -
All the high performance of Crouzet controllers adapted to your specific needsLearn More
If you would like more information about our Controllers or Software, including pricing or technical support, please contact us today!
